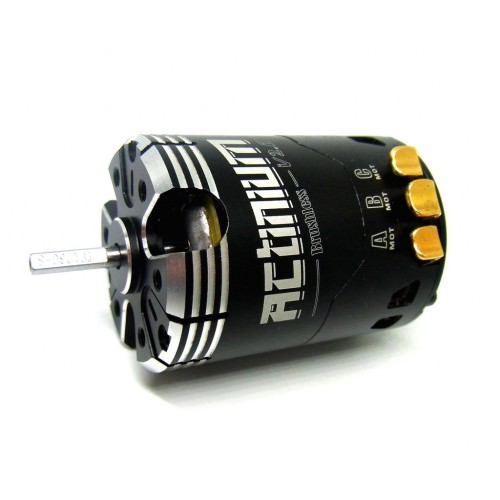

TP-BLM-135100ACT-V2 Team Powers Actinium V2 13.5 Turn Brushless Motor (Sensor) ROAR/EFRA

TP-BLM-135100ACT-V2 Team Powers Actinium V2 13.5 Turn Brushless Motor (Sensor) ROAR/EFRA

 Descrizione

- Design Specification: Based on IFMAR/ROAR/EFRA/BRCA

- Motor Dimensions (Diameter x Length)  35.8mm x 51mm

- Shaft Diameter: 3.17mm

- Magnet Dimensions (Diameter x Length):  ~12.5mm x 24mm(3.5turn~9.5turn), ~12.5mm x7.25x 24mm(10.5turn~21.5turn)

- Variable End bell with changing the output power and torque of the motor

- Weight: ~165g (5g lighter than the old version)

- Recommended RC Model Car: 1:10 model car, Buggy, MINI Car

- Available Turns:  4T, 4.5T, 5T, 5.5T, 6.5T, 7.5T, 8.5T, 9.5T, 10.5T, 13.5T, 17.5T, 21.5T

Improved features based on Actinium V1.0 motor:

- Come with new type neodymium sintered rotor with stronger magnetic field and improve the fade out problem working at high temperature

- New stator design with better power efficiency and lower the motor temperature

- ~8~10% internal resistance(13.5T~21.5T) lower than the V1 motor with new wiring technique

- New air flow convection system that can lower the temperature by 5~8'C

- New endbell with more timing adjustment

Manual Download (Eng Ver):

https://www.team-powers.com/manual/TPBLM_UserGuide-ActiniumV2-08312017_eng.pdf

EFRA Rules

https://news.efra.ws/fileadmin/documents/2016/11/2016%20EFRA%20Brushless%20Motors%2013.5T%20Spec.%202016%20v10%20pdf1.pdf
